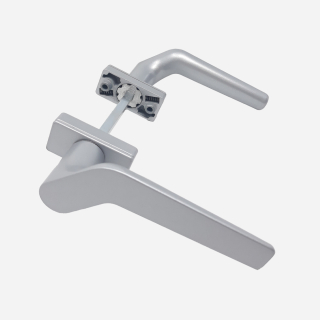

Die-cast aluminium handle, body, body cover and rotor in zamak, screws and pin in steel. Double offset handle for profile sections up to 64 mm
Extruded aluminium body; M8 screw and M6 set screw in galvanized steel. H = 16,2 mm
Stainless steel lever, pins, screw and grub screws; Zamak blocks; nylon blocks. For handle-controlled casement opening that can be installed vertically
Die-cast aluminum handle; Rotor, case and cover in zamak; Derlin washer; Spring, grub screw and pin in galvanized steel; screws in stainless steel. For sash width from 40 to 60 mm
Die-cast aluminum handle; Rotor, case and cover in zamak; Derlin washer; Spring, grub screw and pin in galvanized steel; screws in stainless steel. For sash width from 60 to 80 mm
Die-cast aluminum handle; Rotor, case and cover in zamak; Derlin washer; Spring, grub screw and pin in galvanized steel; screws in stainless steel. For sash width max 90 mm
Stainless steel. Fixing kit with threaded inserts M3
Die-cast aluminum handle, zamak case, cover and rotor, delrin washer, stainless steel screws and grub screws, galvanized steel pin. For sash width from 80 to 100 mm
Flaps in die-cast aluminium; Screw M6 with protective coating Dacromet 320 and washer in galvanized steel, buttons in zamak, springs in hardened steel. 35.9 x 9.9 mm, with Ø 7,5 mm peg
Lever and rods in stainless steel, support and adjustment body in zamak. Bottom hinge for tilt&turn and casement sash. For LH-side opening. Maximum capacity: 130 Kg - 150 Kg in combination with 3310.50
Hinge base body and body in extruded aluminium. locking set screws in stainless steel AISI 303. Galvanized steel adjustment set screw. Zamak bushings. Derlyn Bushings Hinge caps in plastic (Nylon Pa6). 3-flap hinges with reduced wing frame, hole interaxis 22 mm, interaxis 53 mm
