Bushing in nylon; zamak interaxis reducer, stainless steel screws. Fixing screws L 20 mm
Steel levers, adjustment body in zamak Bottom hinge for tilt&turn and casement sash. For LH-side opening. Maximum capacity: 110 Kg - 140 Kg in combination with 3310.50
Lever and rods in stainless steel, support and adjustment body in zamak. Bottom hinge for tilt&turn and casement sash. For Left opening. Maximum capacity: 130 Kg - 150 Kg in combination with 3310.50
Bushing in nylon; zamak interaxis reducer, stainless steel screws. Fixing screws L 16 mm
Bushing in nylon; zamak interaxis reducer, stainless steel screws. In combination with unidirectional movement art. 3628. * - 3631.*. Fixing screws L 14 mm
Corner drive, terminals and retainers in zamak. Tilt before Turn sash base kit logic maneuvre with anti false maneuvre on the drive, for using with handle, version with adjustable pins and fixed strikers.
Corner drive, terminals and retainers in zamak. TILT&TURN SASH BASE KIT LOGIC MANEUVRE WITH ANTI-FALSE MANEUVRE ON THE CREMONE BOLT
Corner drive, terminals and retainers in zamak. TILT&TURN SASH BASE KIT WITH ANTI-FALSE MANEUVER ON THE CREMONE BOLT
Corner drive, terminals and retainers in zamak. Tilt&Turn sash base kit with top anti false maneuver On the drive mechanism for using with handle.

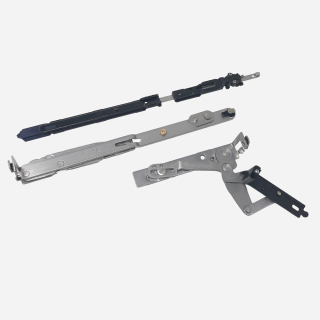

Steel levers, adjustment body in zamak long arm for tilt&turn sash. For RH-side opening (sash width from 571 mm to 1700 mm). Maximum capacity: 110 Kg - 140 Kg in combination with 3310.50
Steel levers, adjustment body in zamak long arm for tilt&turn sash. For LH-side opening (sash width from 571 mm to 1700 mm). Maximum capacity: 110 Kg - 140 Kg in combination with 3310.50
Steel levers, adjustment body in zamak Short arm for tilt&turn sash. For RH-side opening (sash width from 440 mm to 570 mm). Maximum capacity: 110 Kg - 140 Kg in combination with 3310.50
