Made of zamak, nuts and setscrew in stainless steel. Version for slides, casement and folding. Adjustable backset from 30 to 40 mm, stroke 25 mm
Made of zamak, nuts and setscrew in stainless steel. Version for slides, casement and folding. Adjustable backset from 19 to 29 mm, stroke 25 mm
Wing in extruded aluminum, plug in nylon, plate and fixing screw M5 TSC CR in stainless steel. Can be combined with hinge 9227.*

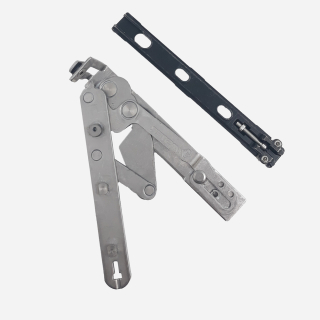

Levers, pins, cams, and frame angle support in stainless steel, adjustment body in zamak. Top hinge for casement. For Right opening. Maximum load 100 kg - 130 kg in combination with 3310.51 - 150 kg in combination with 3310.50+1211 (with limited opening 90°). Adaptable to coplanar profiles up to a 12 mm step.
Stainless steel lever, pins, screws and grub screws; Zamak blocks; Nylon friction. Adjustable friction restrictor arm, in combination to Ween ERRE,Ween Hide 110 ERRE.
Stainless steel lever, pins, screws and grub screws; Zamak blocks; Nylon friction. Adjustable friction restrictor arm, in combination to Ween, Ween Hide 110 and Ween Hide 180.
Zamak tips; delrin offset devices. Top and lower terminal.
Counterplate, screws in stainless steel; zamak adapters. Pressure and height adjustment ± 4 mm.
Bushing in nylon; zamak interaxis reducer, stainless steel screws. Fixing screws L 26 mm
Die-cast aluminum handle, nylon bushing, zama case, stainless steel grain and springs, galvanized steel pin. Pin protrusion 26mm
Hinge and plate in extruded aluminum, plates frame side, pin, eccentric height regulator, screws, cams and stainless steel rains; adjustment pawl in zamak; bush and adjustment bases in nylon. Load 120 kg
Hinge and plate in extruded aluminum, plates frame side, pin, eccentric height regulator, screws, cams and stainless steel rains; adjustment pawl in zamak; bush and adjustment bases in nylon. Load 140 kg
