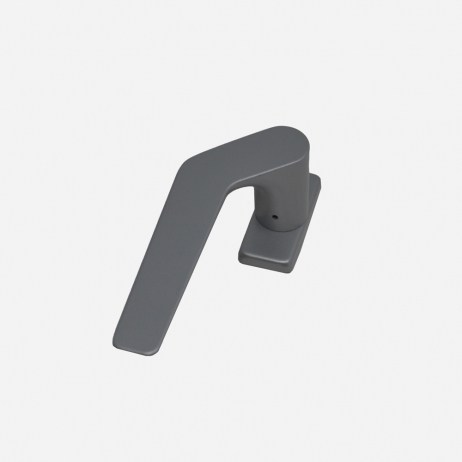

Minimal design offset handle

bollino brevettato

Art. 3091.33D

KARMA

Die-cast aluminium handle, zamak rotor, derlin body, aluminium cover, steel screws and pin and zamak socket. Adjustable panel projection from 42,5 to 52 mm, fixing center distance 43 mm, RH version

  • N. pieces in the packaging: 5 Pz
  • Applicability:
    A01 - Camera Europea Telaio 14/18,
    A02 - Camera Europea Telaio 14/18 - gradino 10,
    A03 - Camera Europea Telaio 10/14,
    A05 - Camera NC,
    A06 - Camera NC - Gradino 10,
    A08 - Erre 40,
    A20 - Camera Europea complanare Telaio 14/18 - gradino 7,
    A21 - Camera Europea complanare Telaio 14/18 - gradino 8,
    A22 - Camera Europea complanare Telaio 14/18 - gradino 9,
    A23 - Erre 40 complanare,
    A28 - Cava 16 asse 9 Telaio 10/14-1218,
    A29 - Cava 16 asse 13 Telaio 10/14-1219
  • Finishes: RAL 1, RAL 2, ARGEN/BRONZ, PVD, TEK
Type of opening:
  • Battente apertura interna singola
    Battente apertura interna singola
  • Battente apertura interna doppio
    Battente apertura interna doppio
  • Anta ribalta singola
    Anta ribalta singola
  • Anta ribalta doppia
    Anta ribalta doppia
  • Sporgere
    Sporgere
  • Scorrevole
    Scorrevole
  • Battente apertura esterna singola
    Battente apertura esterna singola
  • Battente apertura esterna doppio
    Battente apertura esterna doppio
