WEEN HIDE 180

Art. 3305.20D

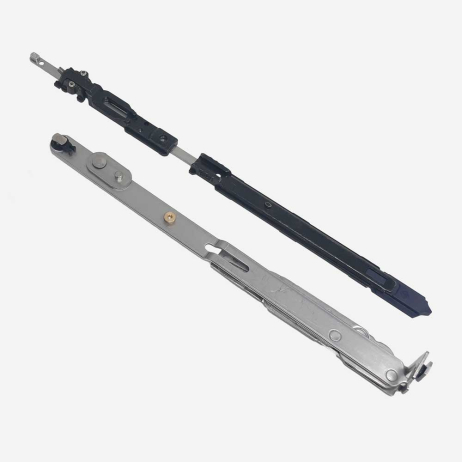

Hinges and concealed top arm

Levers, pins, cams, and frame angle support in stainless steel, adjustment body in zamak. Short arm for tilt&turn sash. For Right opening (sashes from 470 to 670 mm). Maximum capacity: 100 Kg - 130 Kg in combination with 3310.51. Adaptable to coplanar profiles up to a 12 mm step

  • N. pieces in the packaging: 5 pz
  • Applicability:
    A03 - Camera Europea Telaio 10/14
  • Finishes: NATURALE
Type of opening:
  • Anta ribalta singola
  • Anta ribalta doppia
