WEEN HIDE 180

Art. 3306L.10D

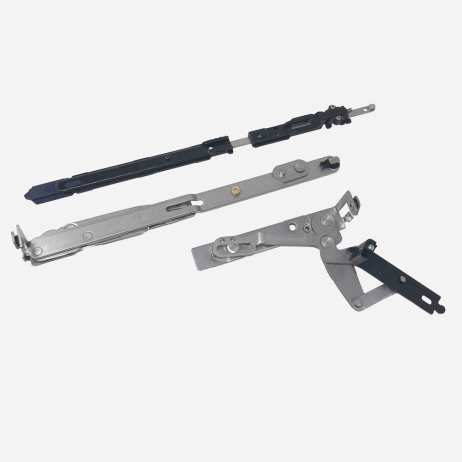

Lower hinge kit and concealed upper arm

Levers, pins, cams, and frame angle support in stainless steel, adjustment body in zamak. With short arm for tilt before turn. For right opening (sashes from 470 to 600 mm). Maximum load 100 kg - 130 kg in combination with 3310.51 - 150 kg in combination with 3310.50+1211 (with limited opening 90°). Adaptable to coplanar profiles up to a 12 mm step.

  • N. pieces in the packaging: 5 pz
  • Applicability:
    A01 - Camera Europea Telaio 14/18,
    A05 - Camera NC,
    A20 - Camera Europea complanare Telaio 14/18 - gradino 7,
    A21 - Camera Europea complanare Telaio 14/18 - gradino 8,
    A22 - Camera Europea complanare Telaio 14/18 - gradino 9
  • Finishes: NATURALE
Type of opening:
  • Anta ribalta singola
  • Anta ribalta doppia
