Art. 3402.24

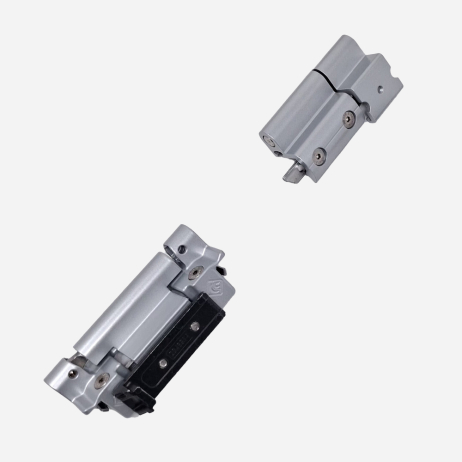

Hinge kit for tilt&turn sash

Extruded aluminium and zamak hinges, counter plates in zamak and stainless steel; stainless steel screws, pins and set screws. Hinge kit for tilt&turn sash. Maximum capacity 100 kg. In combination with the arms art. 3402.2*.

  • N. pieces in the packaging: 5 pz
  • Applicability:
    A01 - Camera Europea Telaio 14/18,
    A03 - Camera Europea Telaio 10/14,
    A05 - Camera NC
  • Finishes: NATURALE, RAL 1, RAL 2, K FINISH, TEK
Type of opening:
  • Anta ribalta singola
  • Anta ribalta doppia
